Broaching standoffs for plastics
| 3D-Data available |
Download |
|---|---|

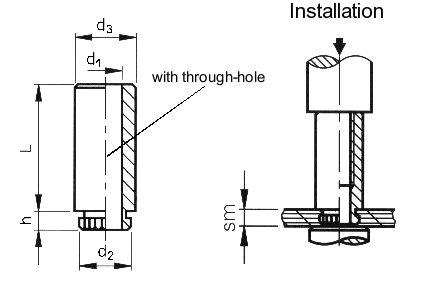

| Order description | KFSE-3,6-6 |
| Through-hole d1 +0.10/-0.08 | 3.6 mm |
| Hole-Ø in the plastic +0.08 0 |
5.40 mm |
| d2 ±0.08 | 5.87 mm |
| d3 ±0.13 | 7.14 mm |
| Max. h | 1.53 mm |
| Min. sm | 1.53 mm |
| Min. edge distance up to the hole centre | 5.5 mm |
| L ±0.13 | 6 mm |
| Thread length tmin. | 6 mm |
| Material | Passivated grade 18/8 stainless steel (AISI 300). |
| Use | Printed circuit boards and other plastics (also for aluminium casting and magnesium) up to HRB 70. |
| Note | Types KFE and KFSE are designed for unplated thru-hole applications. When used in plated thru-hole applications, a tolerance of +.005" - .001"/+0.13 mm -0.03 mm should be used. |
| Tools | Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector |
| Insertion machines |
|
Subject to technical alterations.
Technical performances, installation recommendations as well as unspecified tolerances regarding the dimensions of the parts have to be requested individual for each application before starting the series production.
