FASTEKS FILKO® - blind rivet nuts flat head / knurled shank / open

3D-Data available Download
Order description M4 RUC FEF 3,0

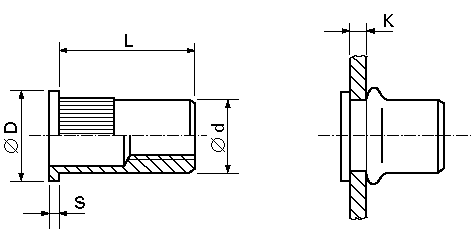

Thread M4
Grip range K 1.3-3.0 mm
Mounting hole-Ø +0,1 6.0 mm
Ø d 6.0 mm
Ø D 8.0 mm
S 0.8 mm
L 10.9 mm
Material Steel
Surface protection: Galvanized with thick coating passivation (RoHS compliant)
Other dimensions and materials on request
  • PNT 110 Hand pliers for installing smaller series
  • DFS 309 T Hand tool for inserting blind rivet nuts and blind rivet bolts
  • KVT810 KVT810
  • 74200 Pneumatic-hydraulic setting tool, way controlled
  • KVT912 Setzgerät pneumatisch-hydraulisch
  • Prosert XTN 20 force and stroke controlled
Subject to technical alterations.
Technical performances, installation recommendations as well as unspecified tolerances regarding the dimensions of the parts have to be requested individual for each application before starting the series production.
